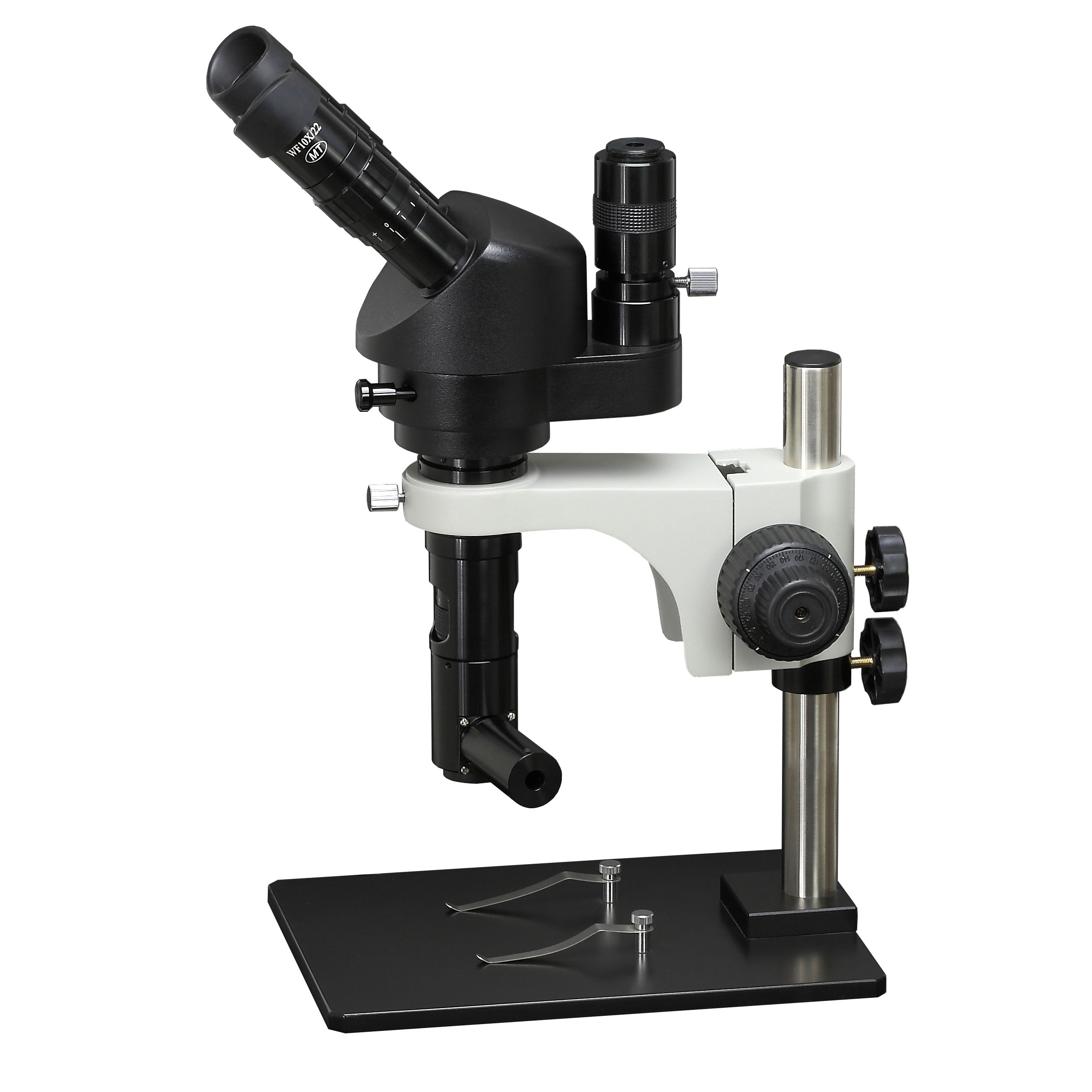

MZDB1175 High-Contrast Coaxial Illumination Series

Description
Specifications
Parameters
Accessories
Other

● Includes MZDB1175BC (binocular)and MZDB1175BTC (trinocular).

● High-quality effect of coaxial illumination. The contrast, definition and depth of field are outstanding.

● In addition to equipped with coaxial illumination, also can equipped with LED ring illuminator.

● Video display and binocular eyepieces observation simultaneously, The image is erecting by eyepieces observation.

● Can connect to CCD (or CMOS) camera, digital camera or film camera.

● Specially used for inspect & measure bottom of small deep hole, defect of LCD, plane pressworks and other plane objects with high reflectivity & low reflectivity simultaneously.

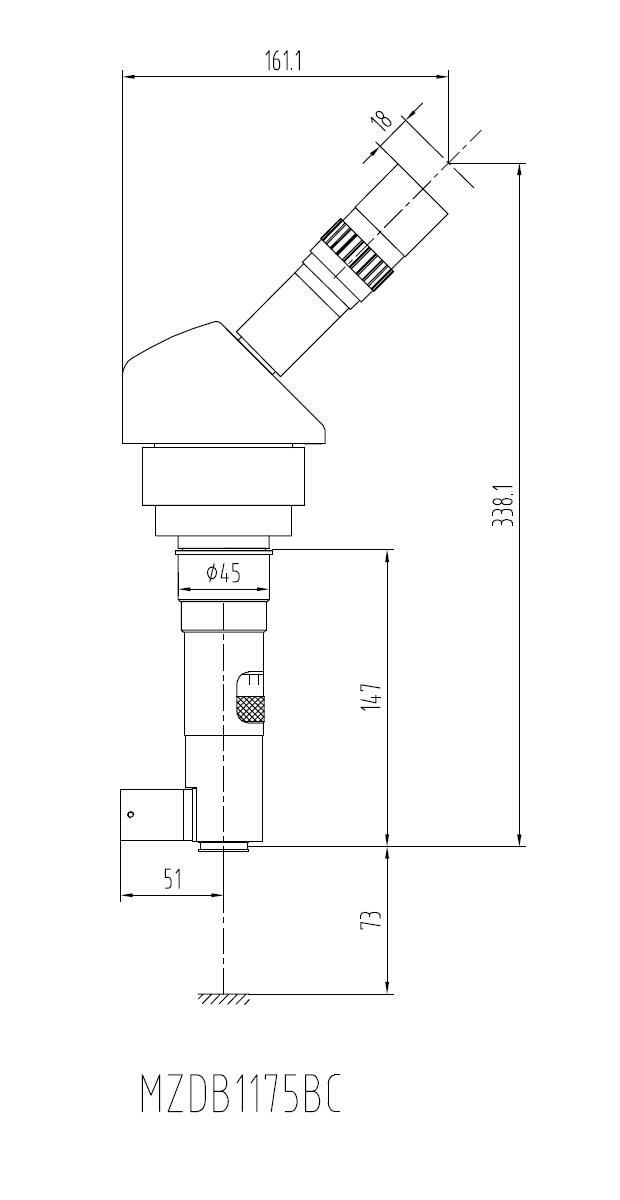

MZDB1175BC+SD11J-D	MZDB1175BC

MZDB1175BTC +SD11J-D+1X CCD	MZDB1175BTC

Returns

Eyepieces observing Magnification	11X~75X (with WF10X/22 eyepieces), the maximal magnification is 450X (with 30X eyepieces)
Zoom range	1.1X～7.5X
WD	73mm
Eyetubes	Binocular eyetubes inclined 45°
Illuminators	Adjustable high brightness, long life LED coaxial illumination
Interpupillary distance adjustment range	52mm~76mm
Diopter adjustment range	±6 Diopter
Holder and main body matching dimension	Φ45mm

Eyepieces	Items	Optical Specification
10X/Φ22	Total Mag.	11X~75X
10X/Φ22	FOV(mm)	Φ20~Φ2.93
15X/Φ17	Total Mag.	16.5X~112.5X
15X/Φ17	FOV(mm)	Φ15.45~Φ2.27
20X/Φ14	Total Mag.	22X~150X
20X/Φ14	FOV(mm)	Φ12.73~Φ1.87
30X/Φ9	Total Mag.	33X~225X
30X/Φ9	FOV(mm)	Φ8.18~Φ1.2
WD(mm)		73
Zoom body magnification range 1.1X～7.5X

Items	CCD adapter
	0.5X	1X
Total Mag.	0.55X~3.75X	1.1X~7.5X
FOV(mm)	6.55X8.73~0.96X1.28	3.27X4.36~0.48X0.64
WD(mm)	73
Zoom body magnification range 1.1X～7.5X

	Stands	SD1-D~SD18-D
	Eyepieces	10X, 15X, 20X, 30X
	Divisional eyepieces	10X, 15X, 20X
	Stage micrometers	CM0.1X, CM0.1XY, CMS0.2
	Auxiliary objectives	DB-W2.0
	CCD adapters	C0.5-S、C1.0-S
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
